SAMPLING SYSTEM

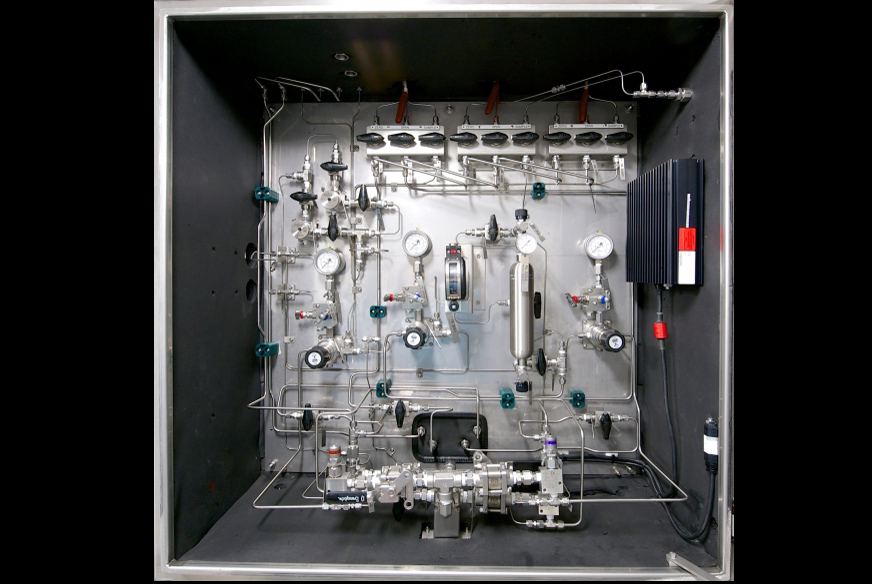

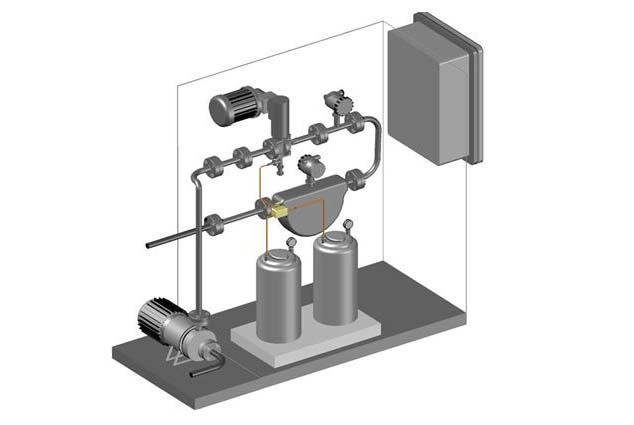

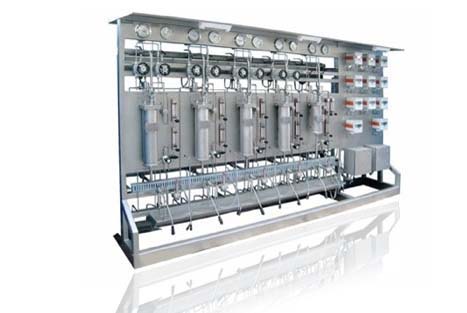

The sampling system are systems intended for Gas and Liquid sample collection or conditioning of samples prior to measurement.

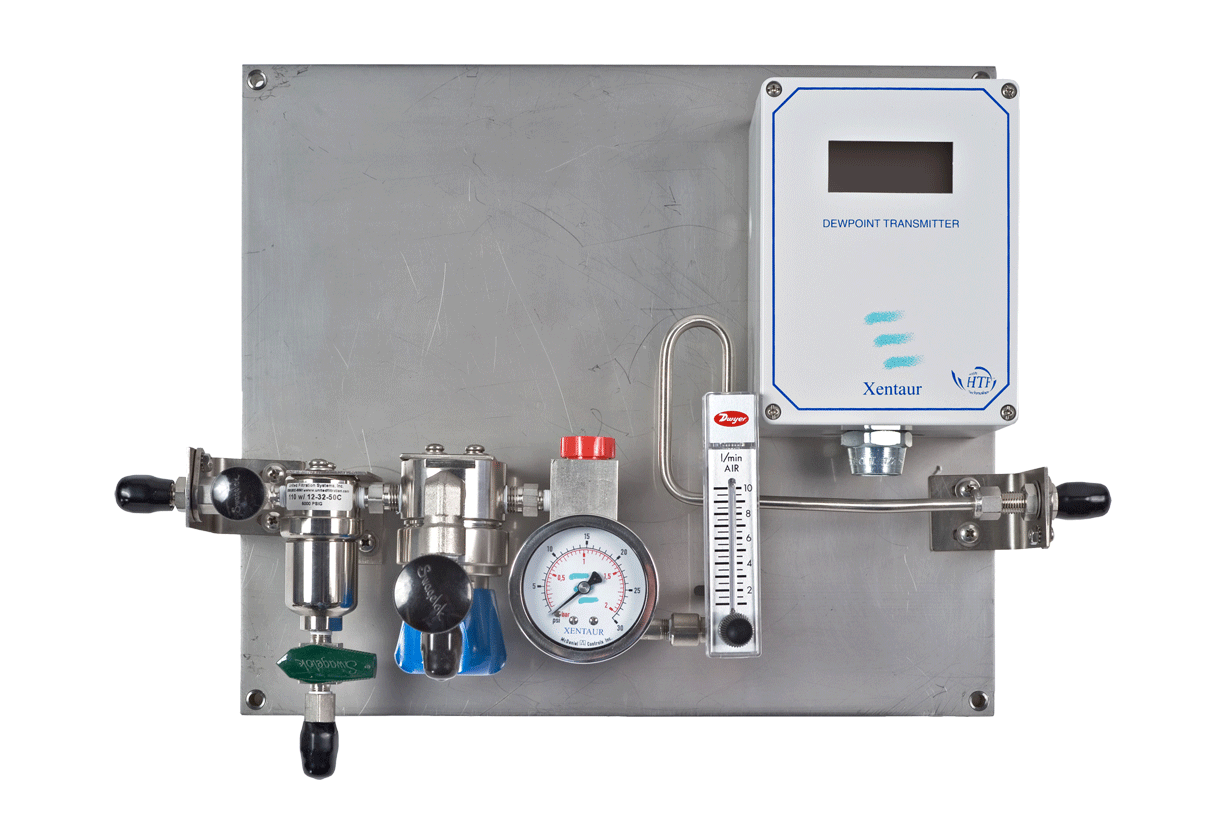

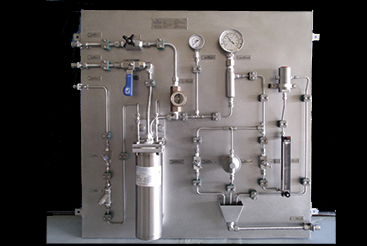

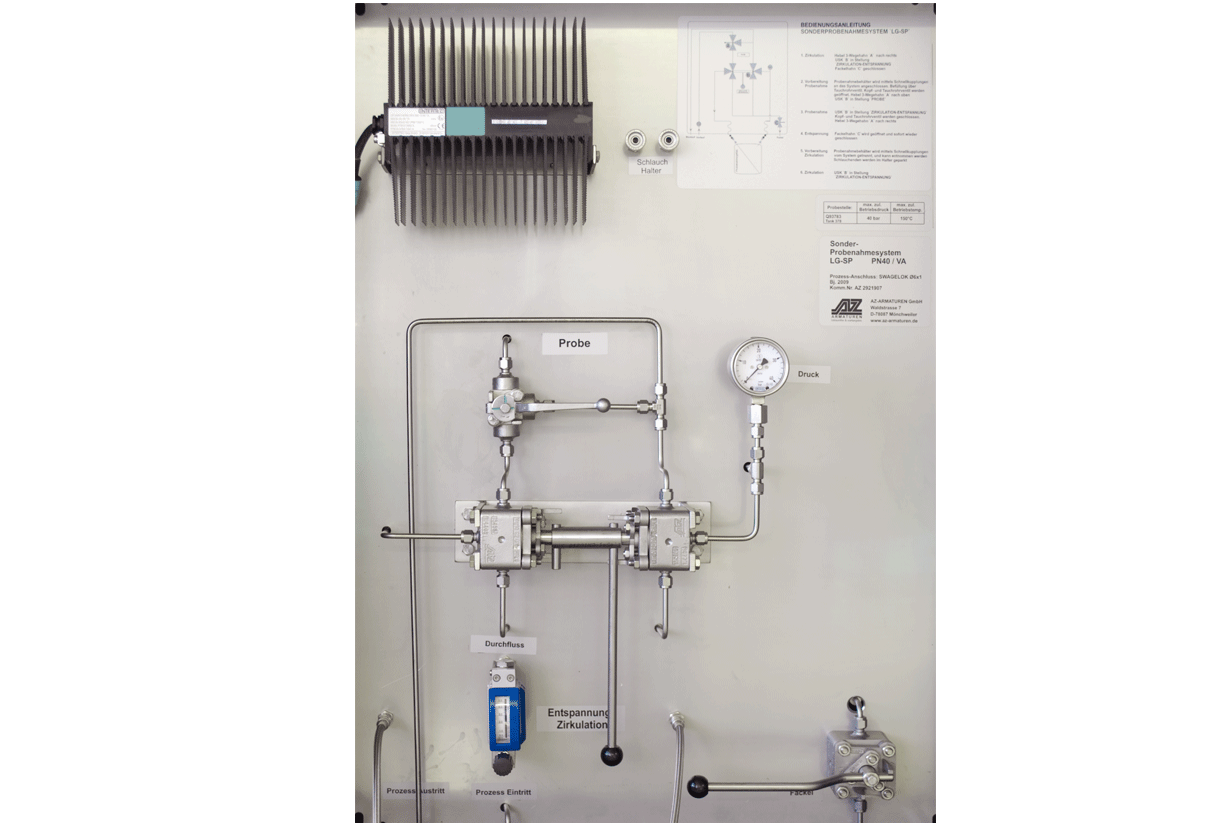

All the instrument components are mounted on a suitable plate in CS painted (or) Stainless Steel with required minimum thickness of 3mm or 5 mm

Tubing are of seamless stainless steel 316/ 316Lof size1/8” .1/4”, ½” , 3/8” or 1”’ OD and Stainless Steel AISI 316/316L tube fittings (Imperial) double compression type with double ferrule. The make and type for fittings shall be SWAGELOK/PARKER /HYLOK OR EQUIVALENT All tubing are adequately supported using tube clamps. All tube are cut and deburred using proprietary tools and by qualified technicians. Tubing laid closely together shall be offset where unions occur to allow spanner access.

The Instrument Valves are in SS316/316L. The make shall be Swagelok or equivalent. All components are mounted on the plate shall be supported with suitable mounting accessories. For sample of High temperature, a sample cooler is required to cool the sample to the required temperature. Water is used as a cooling media. Air can also be used for cooling ( Vortex Coolers ).The cooler consists of a stainless-steel coil, through which the hot sample flows, and a stainless steel body, through which cooling water flows in the opposite direction.

Options are available of hose coupling & quick connect for the Coolers & Sample Bottles.

Options are available of MOC in Duplex, Super Duplex, Monel 400, Inc 825, 6Mo, Inc 625, C-276 or Silico Coating.

APPLICATIONS

Chemical and petrochemical industries
Energy and power plant technology
Feed water heaters and boilers
Food and Beverage
Gas Plants
Oil and gas industries
Pulp and paper
Pharmaceutical
Swimming pools

PRODUCT FEATURE

Pressures from full vacuum to 6,000 psi
Dimensions range From 1/8” to 1” standard or approximate metric equivalent if necessary, as special

SPECIFICATIONS

Materials of Construction
- Carbon steel, 304/L, 316/L, 317, 321, 347 SS, Hastelloy B or C, Inconel 625,Incoloy 825, Monel, 254 SMO
Connection Sizes
- From 1/8” to 1” standard or approximate metric equivalent , if necessary, as special
