Level Gauge & MLI

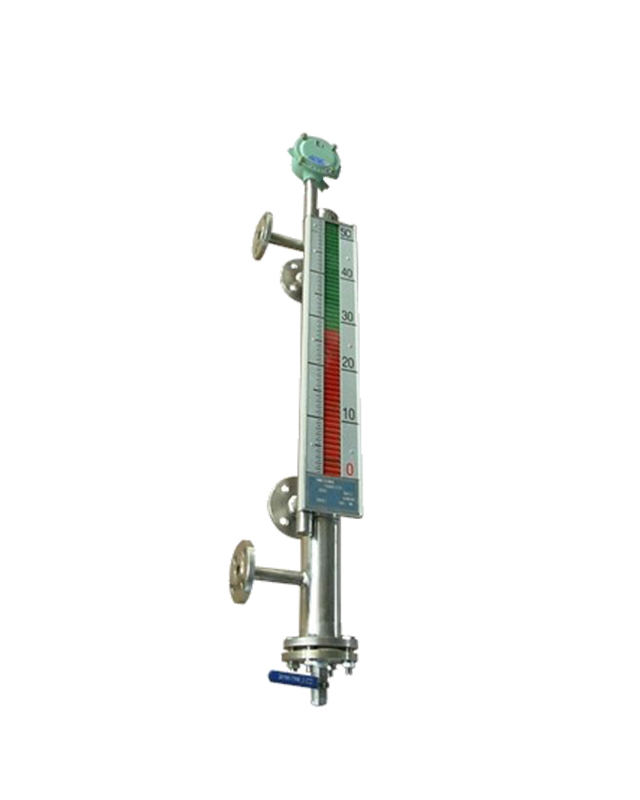

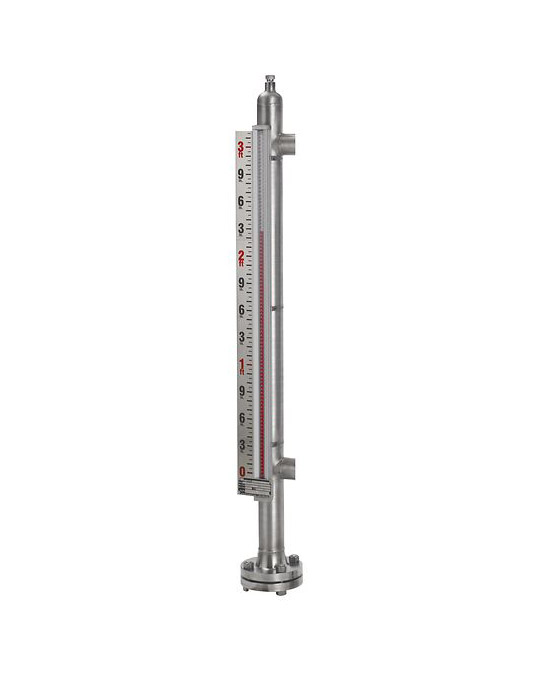

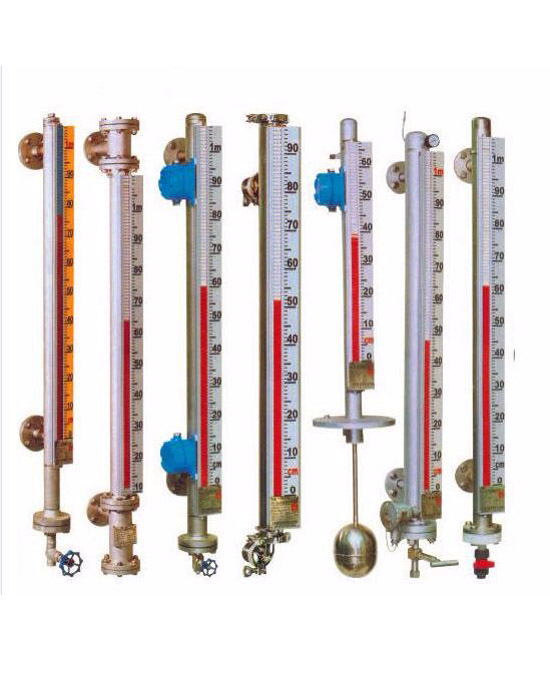

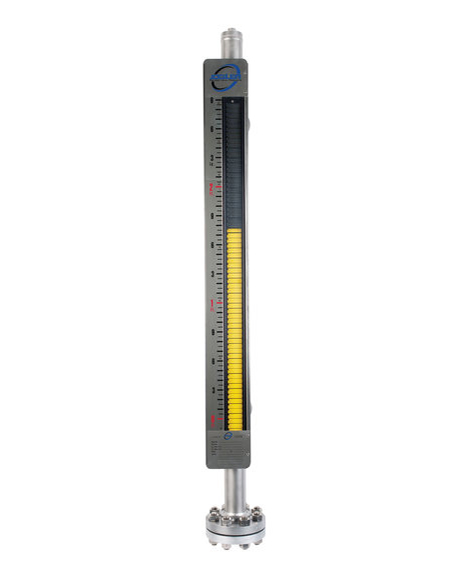

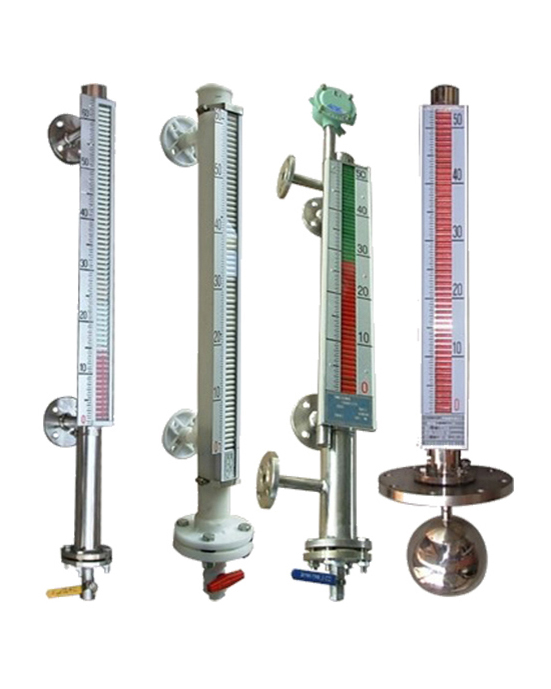

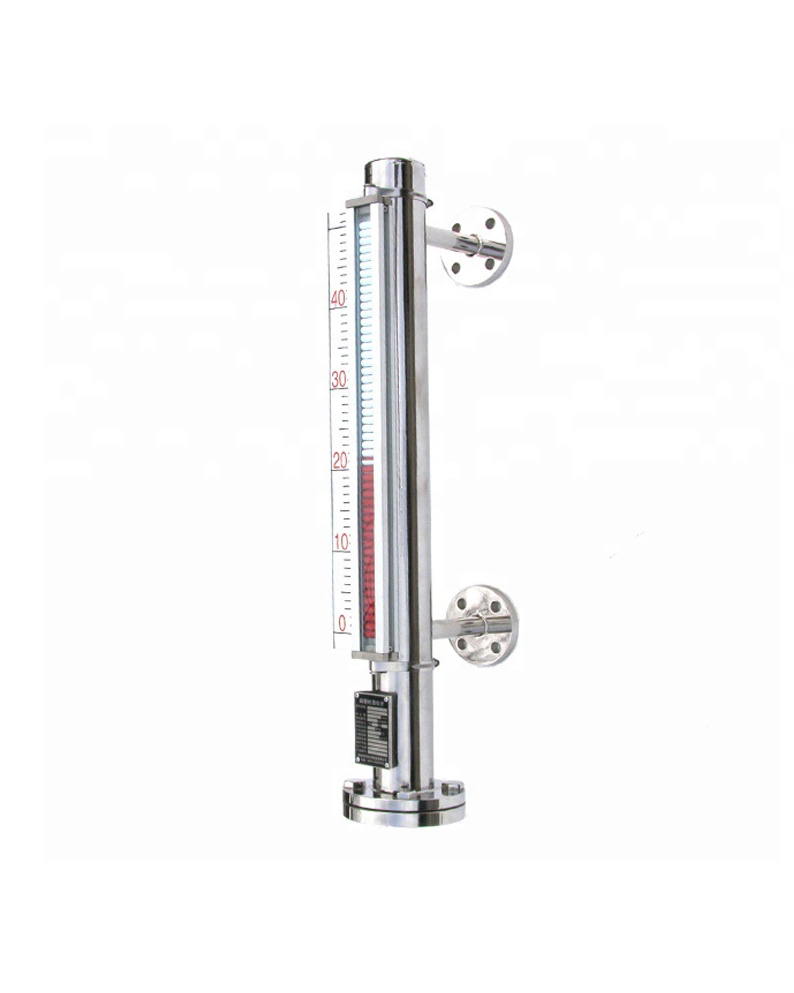

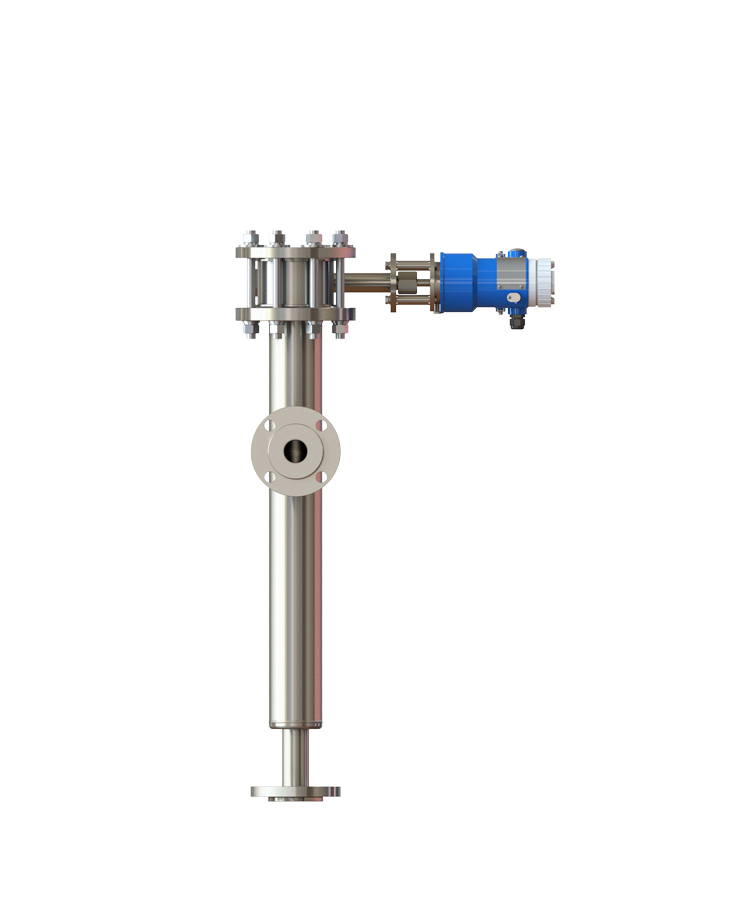

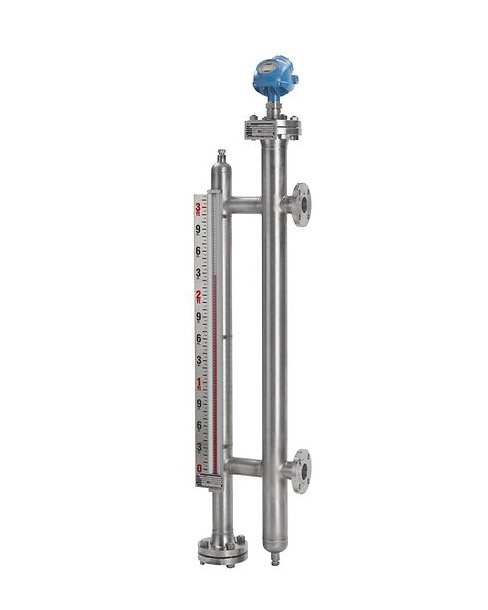

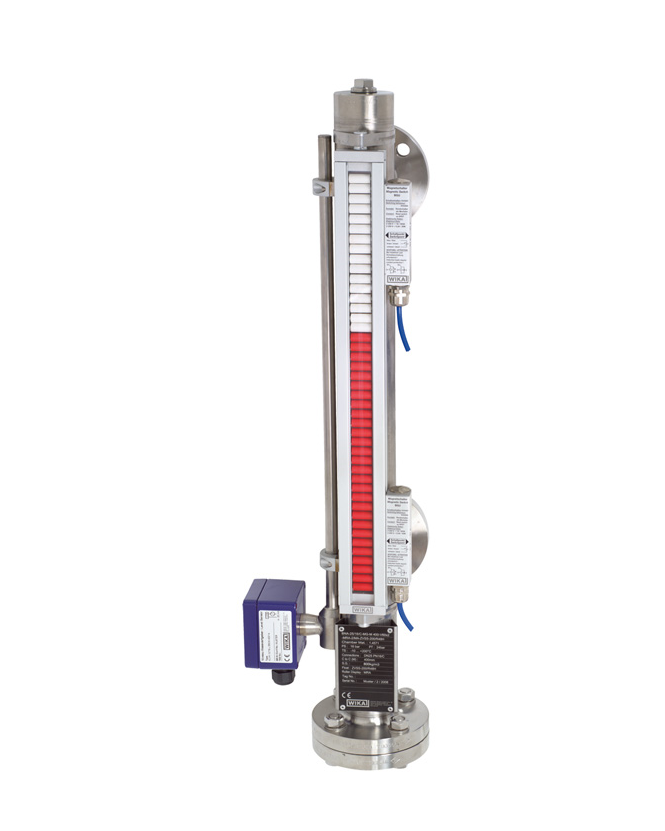

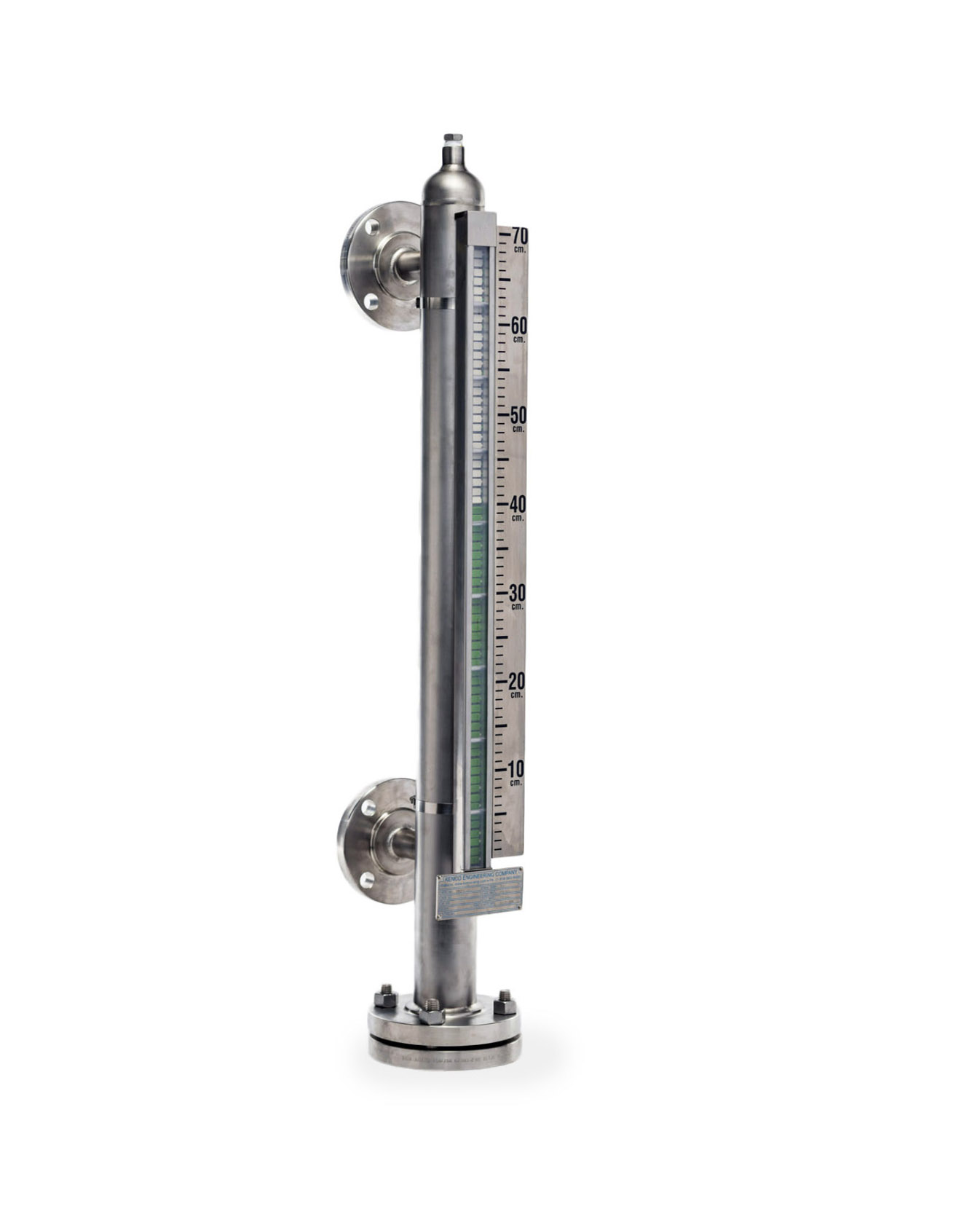

Magnetic Level Indicators are high performance instruments for Level Indication. It consists of a chamber and an internal magnetic float in a non- magnetic housing like SS316/316L, Inc 625, Inc 825 and 31254. The indication ledge is placed on the outside of the chamber. This consists of a bicolour flaps, roller or ball. flaps can be red or white or optional in yellow or black.

It comes with a float failure indication as an option

Applications

Oil and Gas
Petrochemical
Chemical
Power Generation
Water and waste water treatment
Food and Beverage
Pharmaceutical
Pulp and paper
Biotech
Semiconductor

Product Feature

Low installation, maintenance, and engineering cost
High visibility
Warranty on Chamber, Float an indicattion Assembly
Extruded outlet process connection
Custom engineered floats ensure accurate indication and reliablity
All MLG's aree designed to ASME or PED standards
Numerous cchamber styles ( configurations ) for each design. Custom designs available.

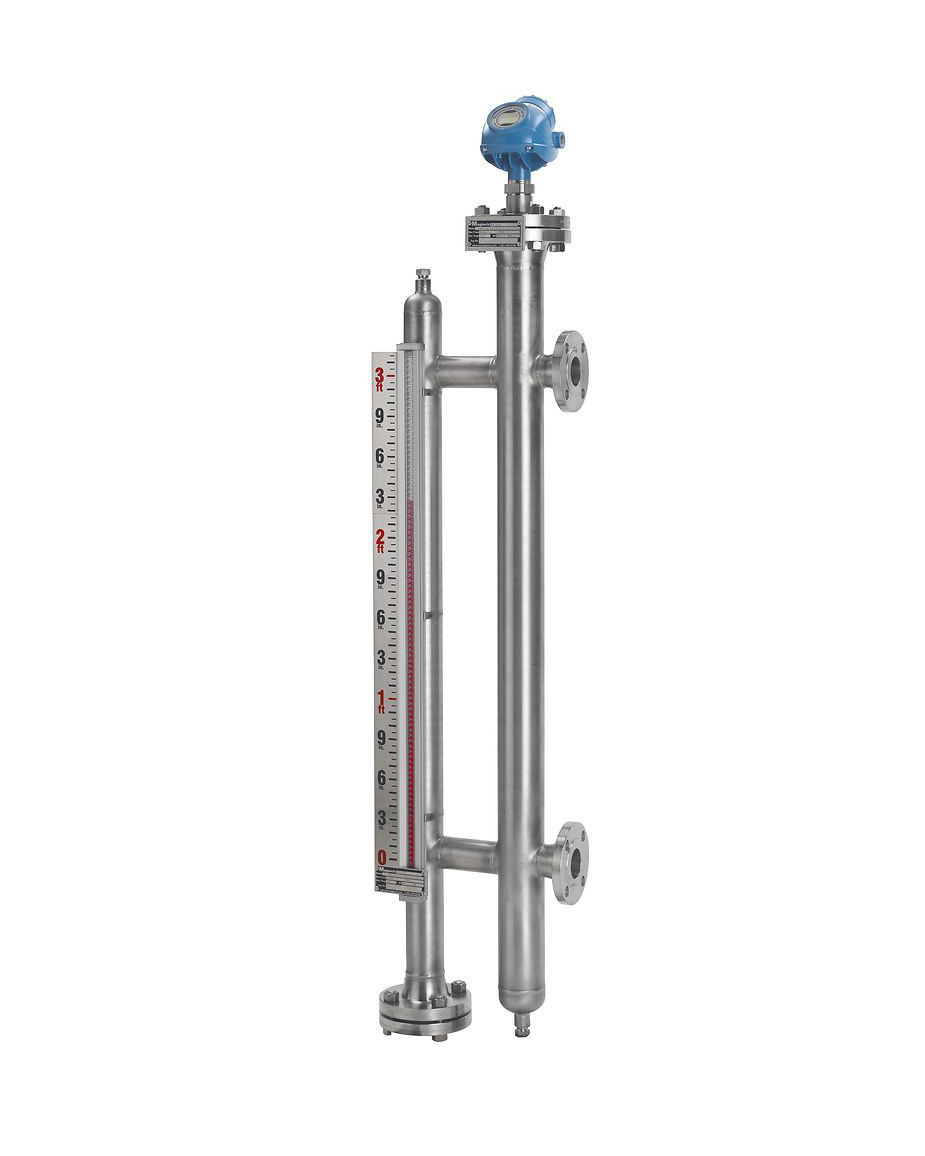

Complete range of level switches and level transmitters, including Eclipse Guided Wave Radar

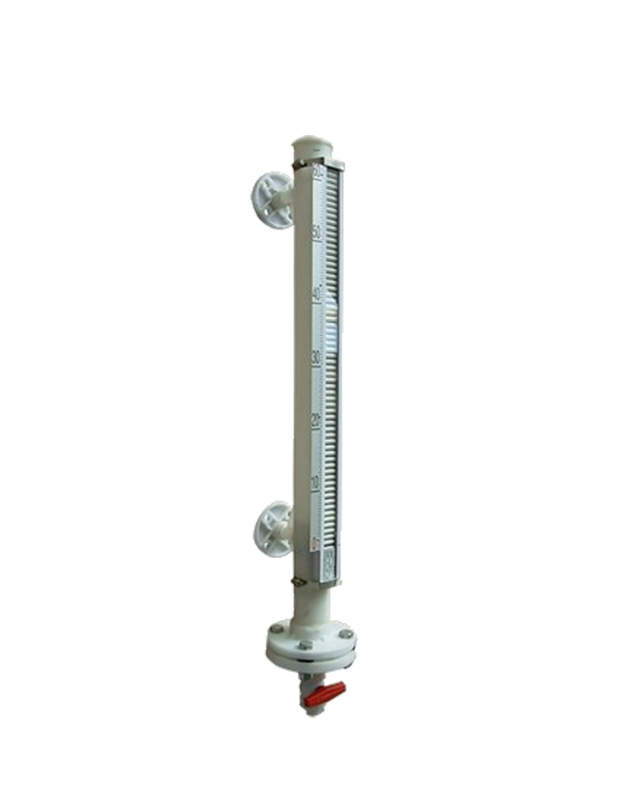

Fabricated, non-magnetic chamber assembly produced in a wide range of metal and plastic materials
ANSI and EN 1092 process connections available
Precision manufactured float with internal magnets and magnetic flux ring
Flag or shuttle type indicator with stainless steel scale to measure height, volume, or percentage of level
Standard float stops springs at top and bottom of chamber
Exceptional code qualified welding

Specifications

Materials of Construction
- Carbon steel, 304/L, 316/L, 317, 321, 347 SS, Hastelloy B or C, Alloy 20, Inconel 625, Monel, 254 SMO
Process connections
- ANSI flanges, male or female threaded, O-let, weld ends
Connection sizes
- From 1/2" to 8" stanard
Audible outlets
- Extruded, O-lets, saddled or welded T's
Vent and drain option
- Flat caps, dome caps, weld neck or slip-on flanges, weld ends, male or female threaded, reducing flanges, valves per specification
Additional options
- High temperature insulation, steam tracing, electrical heat tracing, cryogenic insulation, reinforced flange supports, liquid gas chamber construction.
